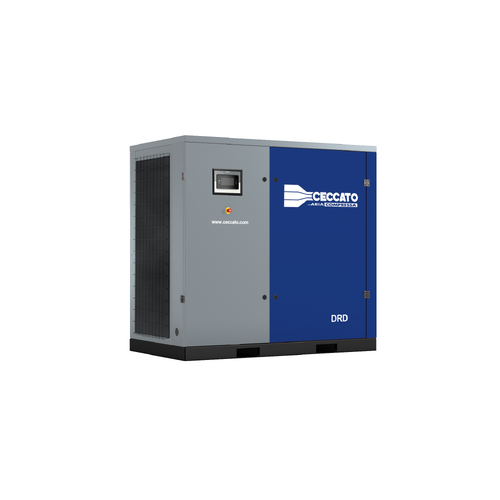

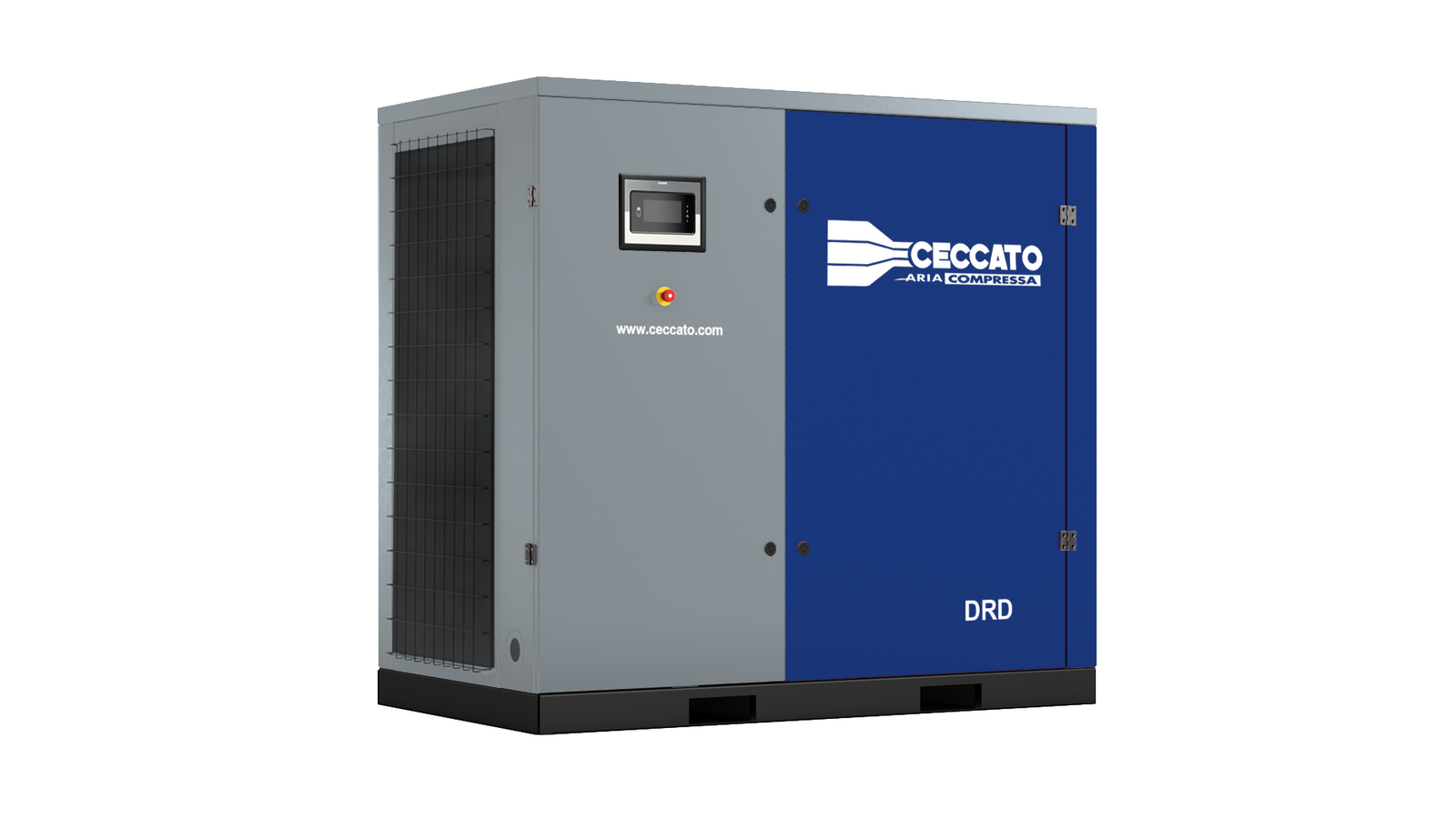

Ceccato DRD75

• Compressor type - Screw
• Use - Continuous
• Noise level - 71dBa
• Working pressure - 8bar/116psi
• Air delivery - 359cfm
• Power - 55kW/75HP
• Electric - 400V/3Ph/50HZ
• Warranty - 1 Year & 2 Years for Air End with Ceccato

Designed to resist under stress and during their application under the harshest conditions in medium businesses, the DRD 75 – 100 HP allows to decrease energy losses and gain energy savings and increase your production systems’ performance, thanks to the IE4 motors. The in-house designed elements the FAD has been increased, and the power consumption has been reduced. Besides, DRD 75 – 100 HP fits the environment with an ambient temperature of up to 46°C degrees.

Easy to install, the DRD 75 – 100 HP grants low maintenance costs, thanks to the removable panels and,  thus, all components are accessible very quickly. Being very silent, DRD 75 – 100 HP fixed-speed screw compressors can be installed directly to the point-of-usage, allowing for a more comfortable workspace.

Available both on base and base with dryers and with different controllers, the DRD 75 – 100 HP at fixed speed offers a wide range of options to push the comfort and your production systems’ performance.

Features:

• Insulation foam deflectors and anti-vibration pads assure low noise levels.
• Easy and fast maintenance enabled by good positioning of service items: belts, oil and filters.
• ES4000: a unique control unit, specially programmed for energy saving & many more capabilities.
• Designed for continuous duty and very hard working conditions.
• Compresses, stores and processes air using under 2m² small footprint.

View the Brochure here.
